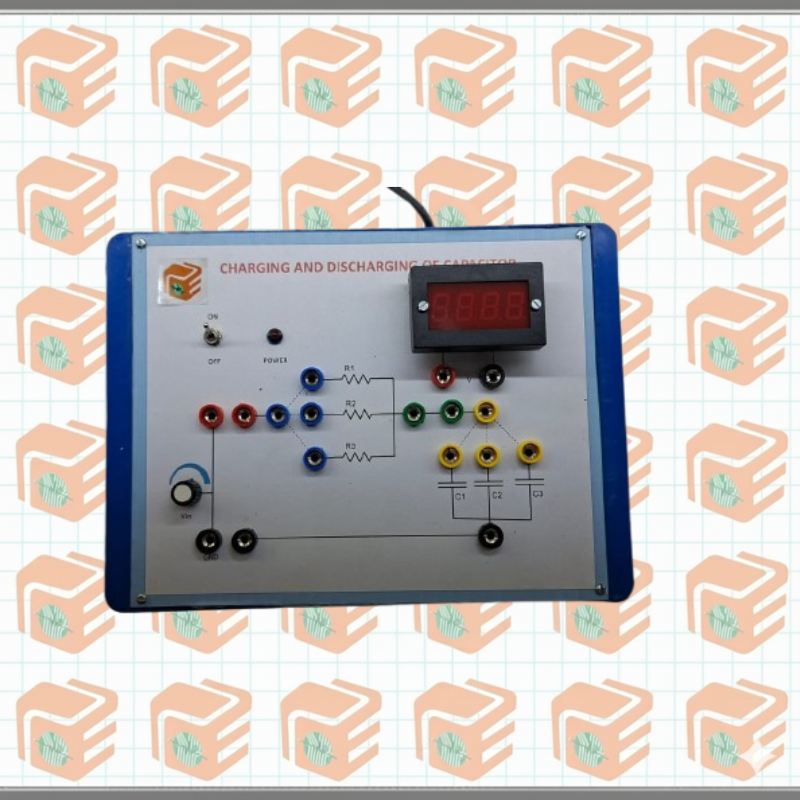

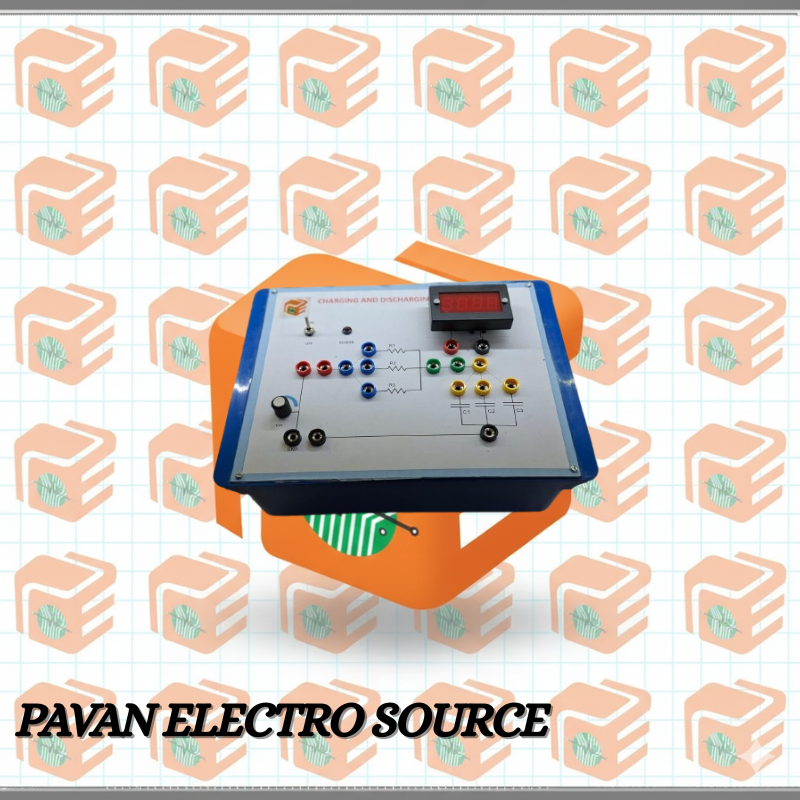

Charging and Discharging Capacitor Trainer Kit

Key Features

• Demonstrates capacitor charging and discharging behavior
• Easy-to-use trainer kit for hands-on learning
• Clear visual indicators for voltage and current
• Suitable for classroom experiments and DIY electronics
• Includes necessary components for immediate use

Technical Specifications

• Operating Voltage: 0–12V DC (typical)
• Capacitor Types: Electrolytic and Ceramic (included)
• Resistors: Various values included for RC experiments
• Interface: Breadboard-compatible trainer board
• Dimensions: Kit-dependent

Applications

• Educational electronics laboratories
• Electronics hobby and STEM learning
• RC circuit experiments and demonstrations
• Arduino and embedded electronics teaching
• Understanding capacitor behavior in circuits

Package Includes

• 1 × Charging and Discharging Capacitor Trainer Board
• Assorted capacitors and resistors for experiments
