Key Features
- 7-channel high-current Darlington driver array
- Handles up to 500mA per channel
- Wide operating voltage: 5V–12V (logic compatible)
- Integrated flyback diodes for relay and inductive load protection
- Compact DIP-16 or SOP-16 package for PCB mounting
- Suitable for Arduino, Raspberry Pi, and other microcontroller applications
Technical Specifications
- Type: Darlington Driver IC
- Model: ULN2003
- Number of Channels: 7
- Collector-Emitter Voltage (Vce): 50V max
- Collector Current (Ic): 500mA max per channel
- Input Logic Voltage: 3V–12V
- Output Type: Open-collector
- Integrated Protection: Flyback diodes for inductive loads
- Package: DIP-16 / SOP-16 (PCB mountable)
- Operating Temperature: −20°C to +85°C
Applications
- Driving relays, solenoids, and motors
- Stepper motor control circuits
- LED and lamp driver circuits
- Microcontroller and logic-level switching projects
- DIY electronics, robotics, and automation systems
Package Includes

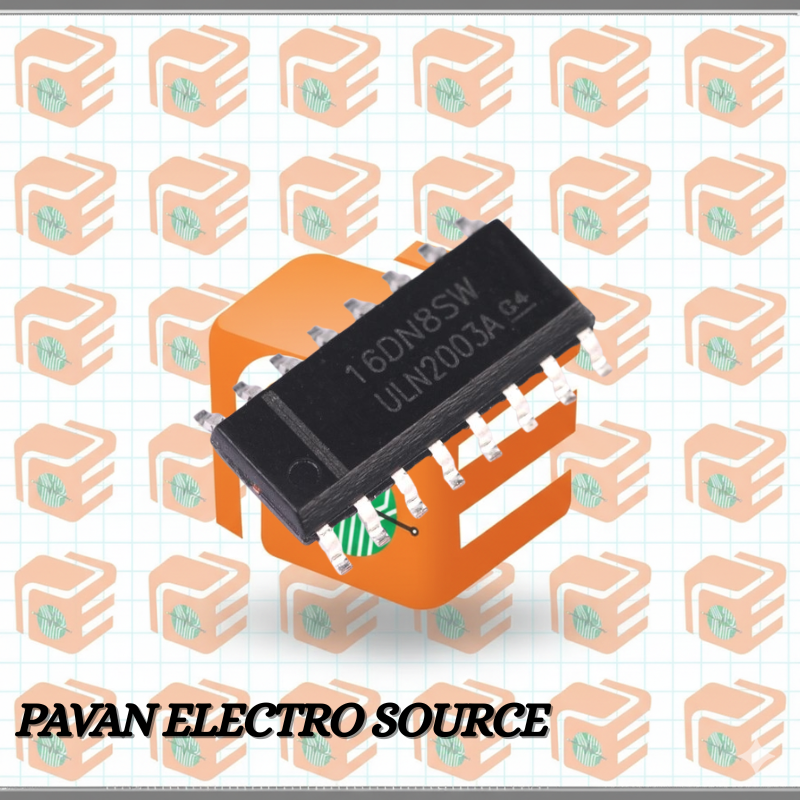

- 1 × IC ULN2003 (DIP-16 / SOP-16 Package)
