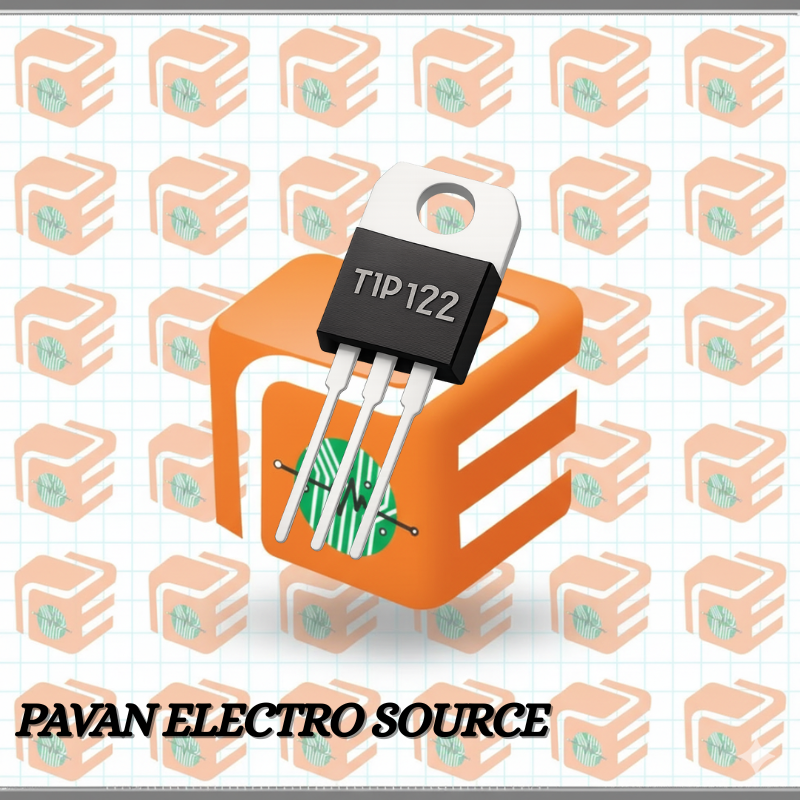

Transistor TIP122

Key Features

• NPN Darlington transistor for high current gain
• Maximum Collector Current: 5A
• Collector-Emitter Voltage up to 100V
• Low saturation voltage for efficient switching
• Ideal for motor control, relay drivers, and power amplification

Technical Specifications

• Type: NPN Darlington
• Collector-Emitter Voltage (Vce): 100V
• Collector Current (Ic): 5A
• Power Dissipation: 65W
• Gain (hFE): 1000
• Package: TO-220

Applications

• DC motor control circuits
• Relay switching projects
• High-power LED drivers
• Audio amplification circuits
• General-purpose switching

Package Includes

• 1 × TIP122 Transistor
